GIS Based Multi Criteria Land Suitability Analysis

GIS Based Multi Criteria Land Suitability Analysis has emerged as an indispensable framework in modern spatial planning. As global populations soar and urbanization accelerates, the demand for optimal resource allocation has never been higher. Determining the absolute best location for a new hospital, a commercial agricultural zone, or a protected wildlife corridor requires more than intuition—it demands a rigorous, data-driven approach. This is where the integration of Multi-Criteria Decision Analysis (MCDA) with Geographic Information Systems (GIS) proves revolutionary.

Unlike simple overlay analysis, which often treats all spatial factors equally, GIS based multi criteria land suitability analysis allows planners and scientists to assign varying weights of importance to different geographic, environmental, and socio-economic variables. By structuring complex decision-making processes through mathematical models (such as the Analytical Hierarchy Process), this methodology transforms subjective planning conflicts into objective, visually compelling suitability heatmaps.

Core Principles of Multi-Criteria Decision Analysis

Before executing any spatial workflows, it is vital to understand the foundational logic driving GIS based multi criteria land suitability analysis. At its core, the goal is to evaluate an entire study area and classify it into zones ranging from "Highly Suitable" to "Not Suitable" for a specific objective.

This process breaks down massive, complex problems into a hierarchy of smaller, manageable criteria. For example, if evaluating land for a new solar farm, the criteria might include solar irradiance, proximity to existing power grids, land slope, and current land use. Not all these criteria are equally important; perhaps solar irradiance is deemed twice as important as grid proximity. MCDA provides the mathematical structure to reflect these priorities accurately across the geographic space.

Classification: Factors vs. Constraints

In GIS based multi criteria land suitability analysis, spatial variables are generally divided into two distinct categories:

• Factors: A factor is a continuous criterion that enhances or diminishes the suitability of a specific alternative. For example, "distance to roads." The closer a parcel of land is to a road, the higher its suitability score for commercial development might be. Factors are usually scaled (e.g., from 0 to 10).
• Constraints: Constraints are absolute limitations (Boolean criteria) that restrict analysis. They represent areas where the objective cannot or should not occur. For instance, "water bodies" or "legally protected national parks" are absolute constraints. They are assigned a value of 0, effectively masking them out of the final suitability heatmap regardless of how well they score on other factors.

The Analytical Hierarchy Process (AHP)

One of the most widely adopted mathematical models for assigning weights in GIS based multi criteria land suitability analysis is the Analytical Hierarchy Process (AHP), developed by Thomas Saaty.

Instead of arbitrarily assigning percentages to different factors, AHP requires the decision-maker to perform pairwise comparisons. Every factor is compared against every other factor on a scale of 1 to 9 (where 1 means equal importance and 9 means extreme importance). These comparisons are placed into a matrix, and linear algebra (specifically the calculation of the principal eigenvector) is used to derive the final, normalized weights for each factor.

Crucially, AHP also calculates a Consistency Ratio (CR). Human judgments can be contradictory (e.g., A is more important than B, B is more important than C, but C is more important than A). If the CR exceeds 0.10, the judgments are considered too inconsistent, and the pairwise comparisons must be re-evaluated. This mathematical rigor is why AHP is a cornerstone of GIS based multi criteria land suitability analysis.

The End-to-End GIS Workflow

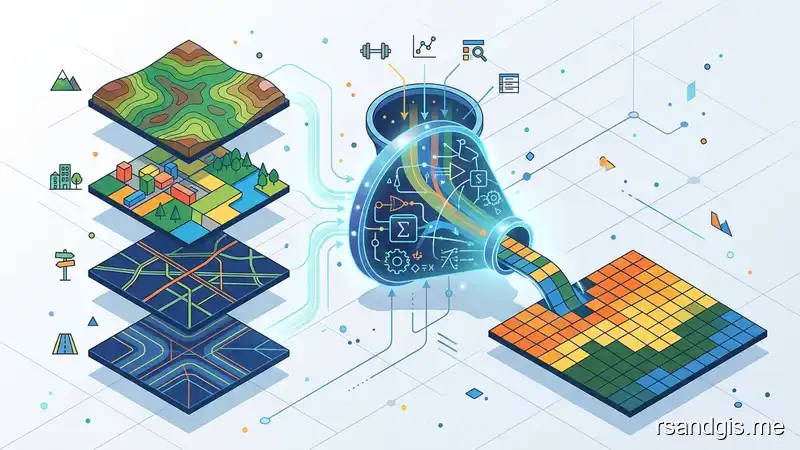

Implementing GIS based multi criteria land suitability analysis involves a strict spatial processing pipeline. The workflow transitions from raw data collection to standardizing variables, applying weights, and executing the final overlay.

Step 1: Reclassification and Standardization

Because spatial criteria come in entirely different units (e.g., slope in degrees, distance to roads in meters, land cover as categorical text), they cannot be directly overlaid. The first major step in GIS based multi criteria land suitability analysis is standardizing all factors onto a common scale, typically 1 to 10 or 0 to 255.

For example, using the Euclidean Distance tool, we can generate a continuous raster showing the distance from every pixel to the nearest road. We then use a Fuzzy Membership or Reclassify tool to transform those distances into suitability scores (e.g., 0-500 meters = score 10; 500-1000 meters = score 8; >5000 meters = score 1).

Step 2: Weighted Linear Combination (WLC)

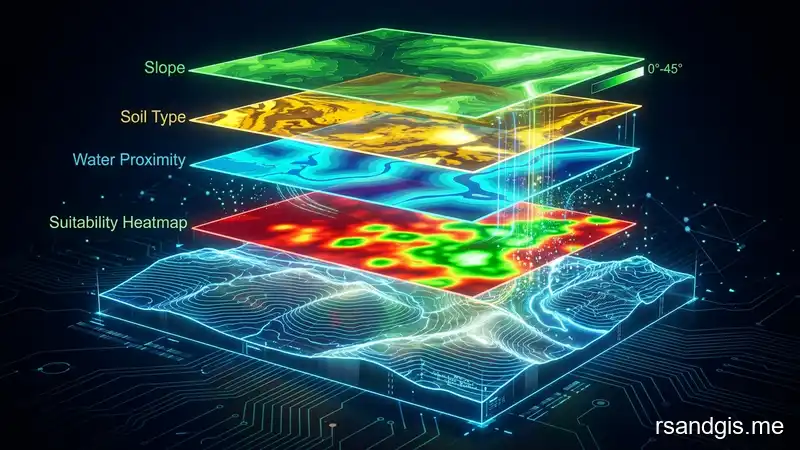

Once all factor rasters are standardized and constraints are generated as Boolean masks (0 or 1), the final mathematical overlay is performed using Weighted Linear Combination (WLC). In a GIS Raster Calculator, the formula looks like this:

Suitability = (Factor1 * Weight1 + Factor2 * Weight2 + ... + FactorN * WeightN) * ConstraintMask

This pixel-by-pixel calculation results in a final, continuous raster surface where high values represent the absolute most suitable locations based on the mathematically weighted criteria.

Real-World Applications

The versatility of GIS based multi criteria land suitability analysis means it is actively utilized across a vast spectrum of disciplines.

Urban and Regional Planning

As cities expand, determining the direction of growth is critical. Urban planners use this methodology to identify optimal locations for new residential zones. Criteria often include proximity to existing utilities, low slopes, high soil stability, and distances from hazardous zones (like floodplains or industrial sectors).

Agricultural Optimization

Precision agriculture relies heavily on suitability mapping. By analyzing soil pH, historical rainfall, drainage density, and solar irradiance, agronomists can generate high-resolution maps indicating exactly which crops will thrive in specific parcels of land, thereby maximizing yield and minimizing resource waste.

Environmental Conservation

Conservationists use GIS based multi criteria land suitability analysis to design protected wildlife corridors. By weighting factors such as distance from human settlements, canopy cover density, and proximity to water sources, they can identify the most critical habitats that require immediate legal protection.

Frequently Asked Questions

Conclusion

In an era defined by competing land interests and environmental constraints, guessing is no longer a viable strategy for resource management. GIS based multi criteria land suitability analysis bridges the gap between subjective human priorities and objective spatial data. By transforming complex, conflicting variables into clear, actionable, and mathematically sound heatmaps, this powerful methodology remains the gold standard for spatial decision-making and sustainable development.
